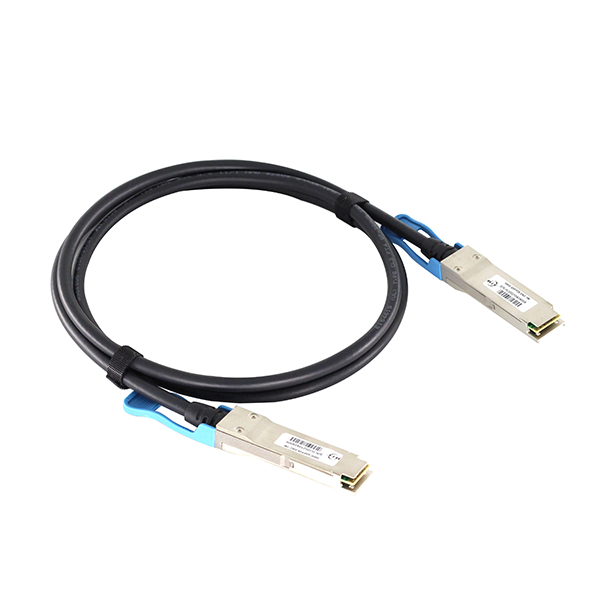

100G QSFP+ DAC 规格
|
描述 |
|
通道数
|
Tx & Rx |
|
通道速率 |
28.3125 Gbps |
|
操作温度
|
0 to + 70°C |
|
存储温度 |
-40 to + 85°C |
|
电源电压
|
3.3 V |
|
电气接口
|
38 pins 边缘连接器 |
|
管理界面
|
Serial, I2C |
|
产品参数 |
符合 |
最小值 |
典型值 |
最大值 |
单位 |
备注 |
|
差分阻抗
|
Zd |
90 |
100 |
110 |
Ω |
|
|
差分输入回波损耗
|
SDDXX |
<-12+2* SQRT (f) with f in GHz |
dB |
0.01~4.1GHz |
||
|
<-6.3+13*Log10/(f/5.5) with f in GHz |
dB |
4.1~19GHz |
||||
|
共模输出回波损耗
|
SCCXX |
< -7+1.6*f with f in GHz |
dB |
0.01~12.89GHz |
||
|
|
dB |
12.89~19GHz |
Gbps |
|
||
|
差分波形失真
|
dWDPc |
|
|
6.75 |
dB |
|
|
VMA 损耗 |
L |
|
|
4.4 |
dB
|
|
|
VMA 损耗串扰比
|
VCR |
32.5 |
|
|
dB |
|
兼容品牌
| Cisco | Alcatel Lucent | Netgear |
| Mellanox | Allied Telesis | SMC |
| Huawei | SolareFlare | Foundry |
| Juniper | Winyao | Force 10(Dell) |
| Dell＆EMC | ZTE | Linksys |
| Arista | D-Link | McAfee |
| Broadcom | TP-Link | Extreme |
| Qlogic(Cavium) | Ruijie | Marconi |
| Cheisio | Maipu | Blade |
| Intel | Feixun | Hirschmann |
